Overview
USB to CAN Adapter Model, Adopts STM32F103 Chip Solution, CAN Baud Rate Configurable, Supports Multiple Working Modes, Multi-system Compatible

Features
--Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)

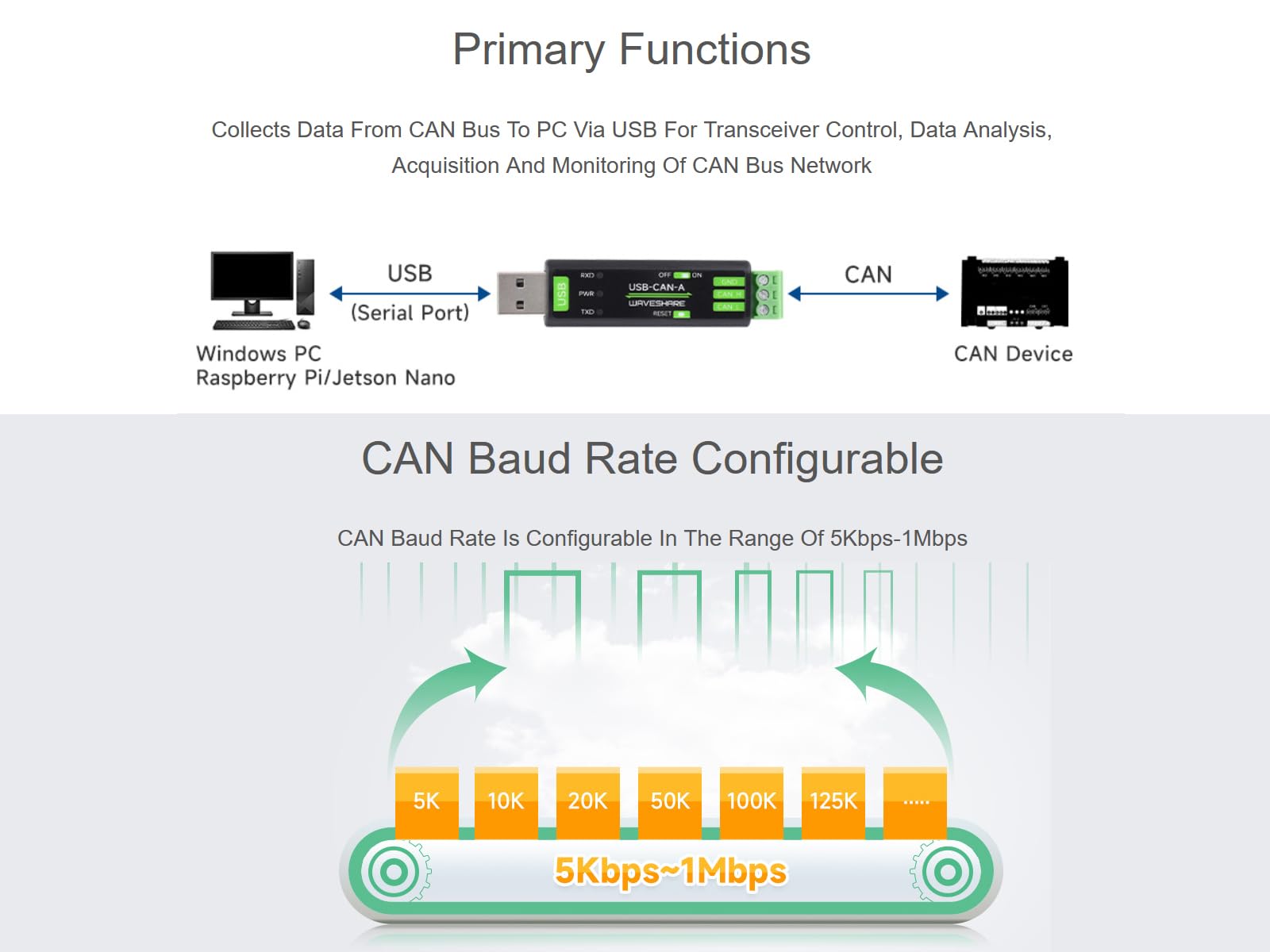

--CAN baud rate is configurable in the range of 5Kbps-1Mbps
--Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
--Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
--Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
--Data can be saved as TXT or Excel
--Supports CAN bus detection for status checking
--Sending/receiving CAN data with time scale, allows sequentially displaying
--Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
--Supports setting working parameters by configuration software or serial command, can be saved after power off
--Adopts STM32F103 chip solution, stable and reliable communication

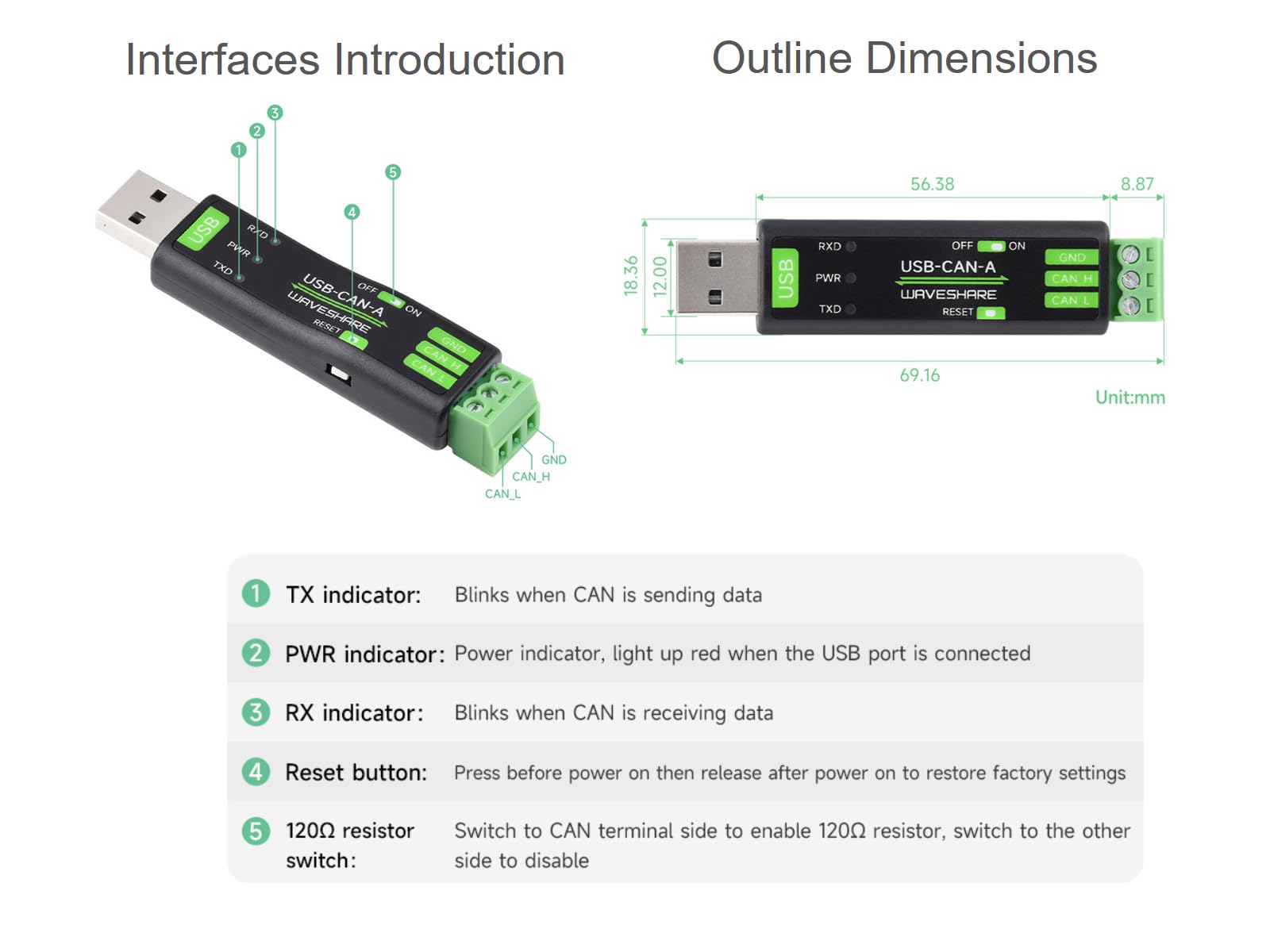

--Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
--Comes with master computer software for Windows system, easy to use
--Easy secondary development, just need to modify the sending and receiving commands

Package Content

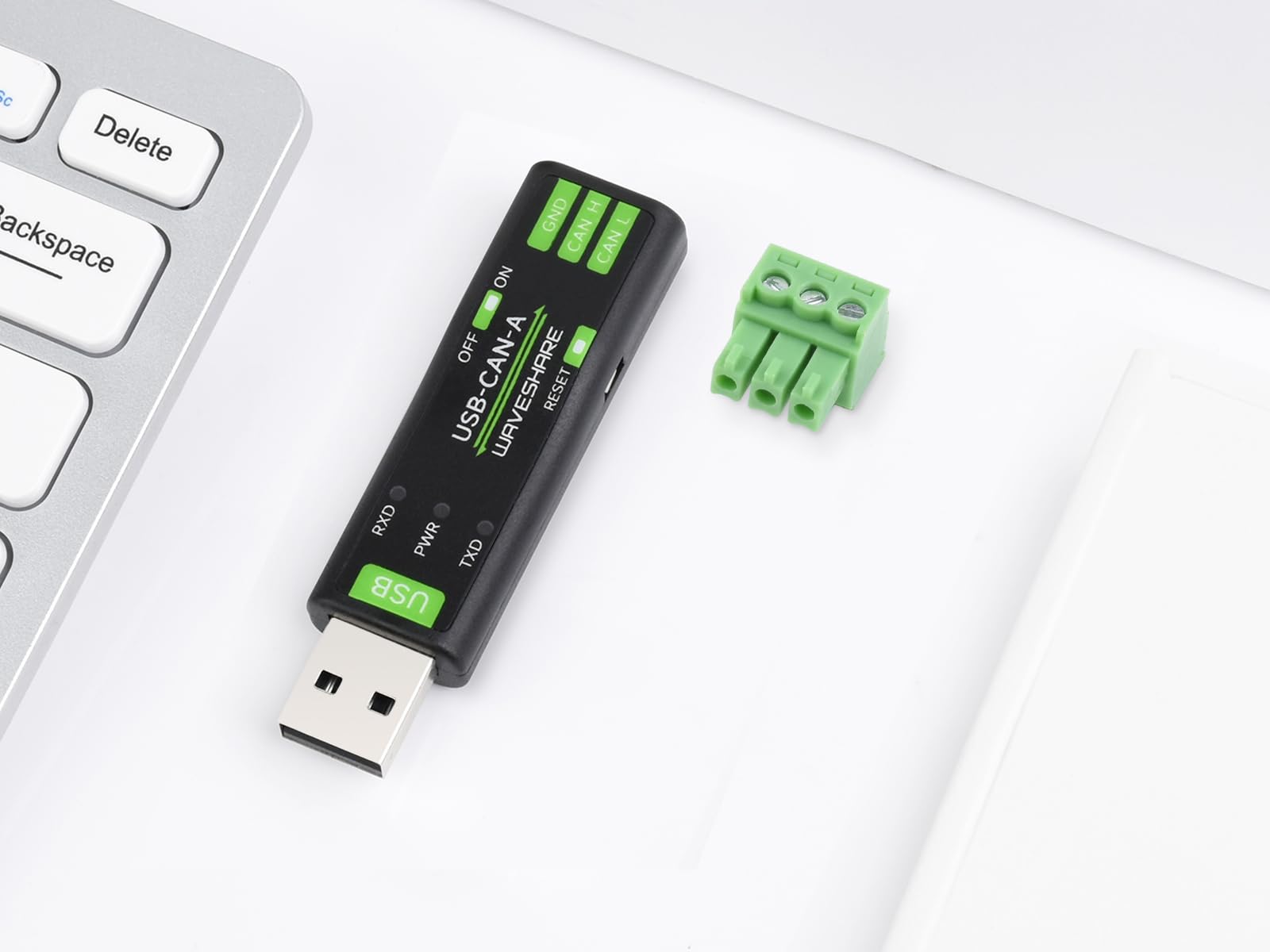

USB-CAN-A x1
USB Cable ~1.5m x1
Screwdriver x1

Development Resources
https://www.waveshare.com/wiki/USB-CAN-A

Brand	Waveshare
Product Dimensions	6.78 x 1.83 x 0.89 cm; 90 g
Item model number	USB-CAN-A
Manufacturer	Waveshare
Series	USB to CAN Adapter
Colour	green
Memory Technology	DDR
Number of HDMI Ports	1
Power Source	Corded Electric
Are Batteries Included	No
Item Weight	90 g
Guaranteed software updates until	unknown

Waveshare USB to CAN Adapter Data Analyzer CAN Bus Converter Based on STM32 Chip, Supports Windows 11/10/8/7/XP and Raspberry Pi OS/Jetson Nano Ubuntu etc. Linux Systems, with USB Cable
