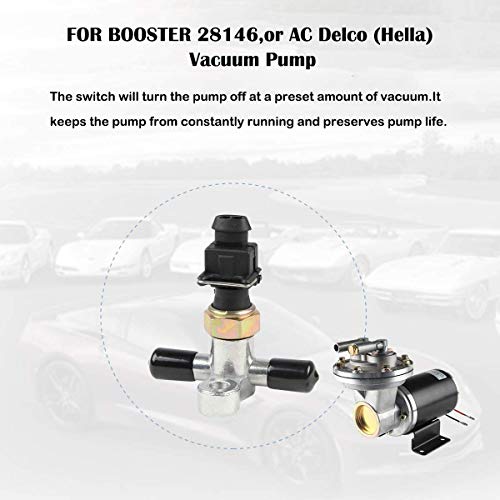

The 28146SW Brake Vacuum Switch is a precision-engineered 12V automatic pressure switch designed to optimize electric brake vacuum pumps. It activates between 0.04 and 0.06 MPa to maintain ideal vacuum levels, preventing pump overuse and extending pump life. Featuring a secure screw mount and preset, tamper-proof adjustment, it fits seamlessly with 28146 pumps and popular models like AC Delco (Hella) and ’79 Corvette. Backed by warranty and designed for leak-free performance, it’s the smart upgrade for professional-grade brake systems.
| ASIN | B08QMLQC4C |
| Are batteries included? | No |
| Brand | Semcto |
| Coil Voltage | 12 Volts |
| Colour | 28146 Brake Vacuum Switch |
| Connector Type | Screw |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Country of Origin | USA |
| Customer Reviews | 3.4 3.4 out of 5 stars (155) |
| Date First Available | 13 August 2022 |
| Item Weight | 95 g |
| Item model number | 28146BP-002 |
| Manufacturer | Semcto |
| Maximum Switching Voltage | 12 Volts |
| Minimum Switching Voltage | 12 Volts |
| Model number | 28146BP-002 |
| Mounting Type | Screw Mount |
| Number of Memory Sticks | 1 |
| Number of Terminals | 3 |
| Operation Mode | Automatic |
| Package Dimensions | 12.1 x 7 x 4.4 cm; 95 g |
| UPC | 709930351526 |
T**S
I'm using this as a brake vacuum boost pump switch on a custom electric vehicle and it works perfectly. I saw other reviews mention that theirs chatters but mine doesn't chatter at all and works perfectly so far.
J**S
Excellent
J**E
Broken item sent
L**C
Works well
L**S
This switch is terrible! Worked for about 5 minutes, it stopped working and would not turn the vacuum pump on, I found out when I when to push the pedal and had not brakes. Beware, this is a huge safety risk.
