Application:

Light intensity detection, intelligent car light module, with directional, only sense light source in front of the sensor, better to use for searching light.

Module Features :

1.Can detect the brightness and the ambient light intensity (compared with photo-resistor, this module has better directionality , can sense light in fixed direction)

2.Adjustable sensitivity (use the blue digital potentiometer to adjust)

3.Operating Voltage: 3.3V-5V

4.Output Format : DO digital switching outputs (0 and 1) and AO analog voltage output

5.Has a fixed bolt holes for easy installation

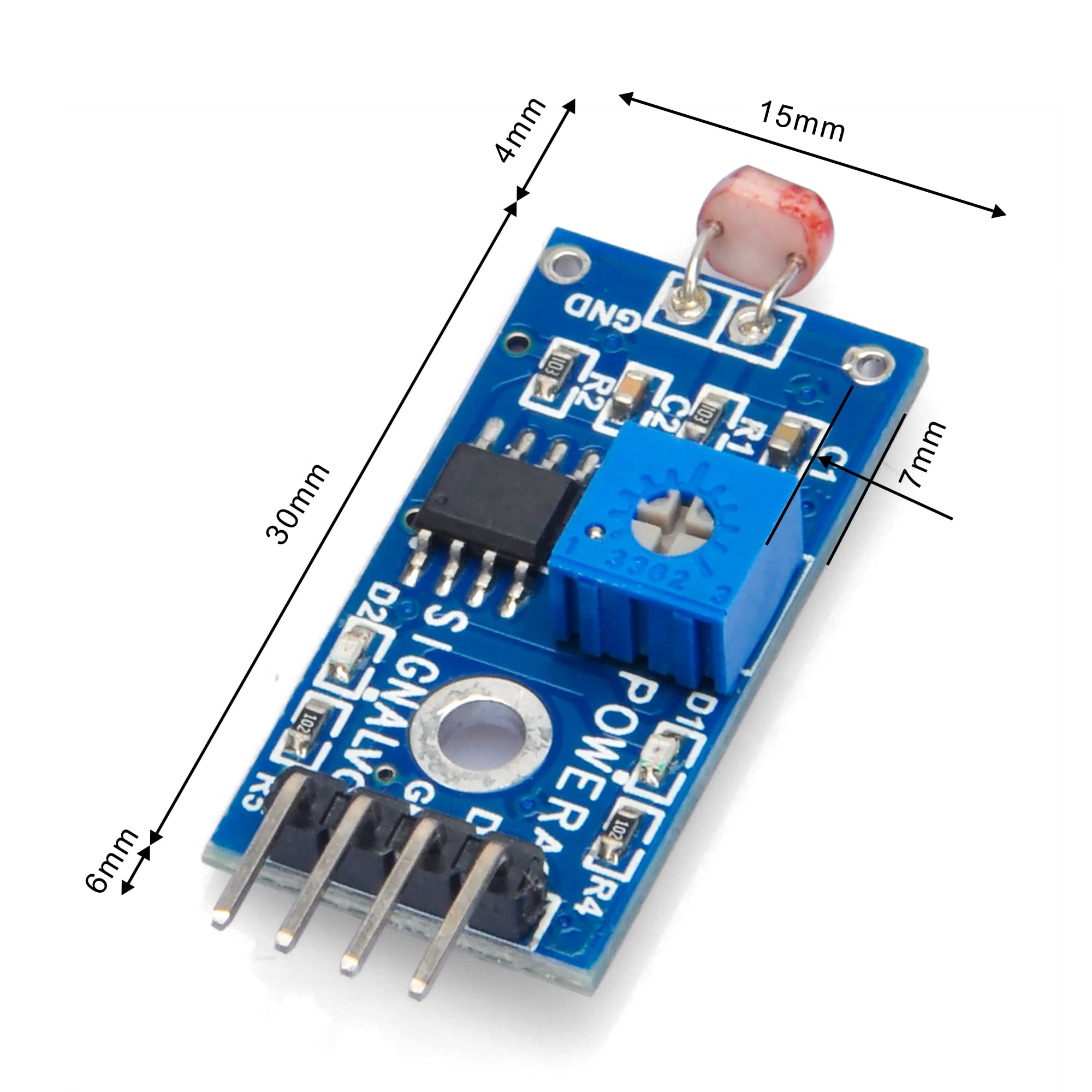

6.PCB Size : 3.2cm * 1.4cm

Module Instructions:

1.Photodiode module is most sensitive to environmental light intensity , generally used for detecting the ambient brightness and light intensity , can be common with photosensitive resistance sensor module in most cases , the difference between this two is that Photodiode module has a better directionality, can sense light in fixed direction;

2. When ambient light intensity does not reach the threshold value, the module DO port output high; when the ambient light intensity exceeds a set threshold, the D0 output low;

3.Digital outputs D0 can be directly connected with the microcontroller through the microcontroller to detect high and low , thereby detecting the light intensity changes in the environment;

4. Analog output and the AD conversion process, can achieve higher accuracy.

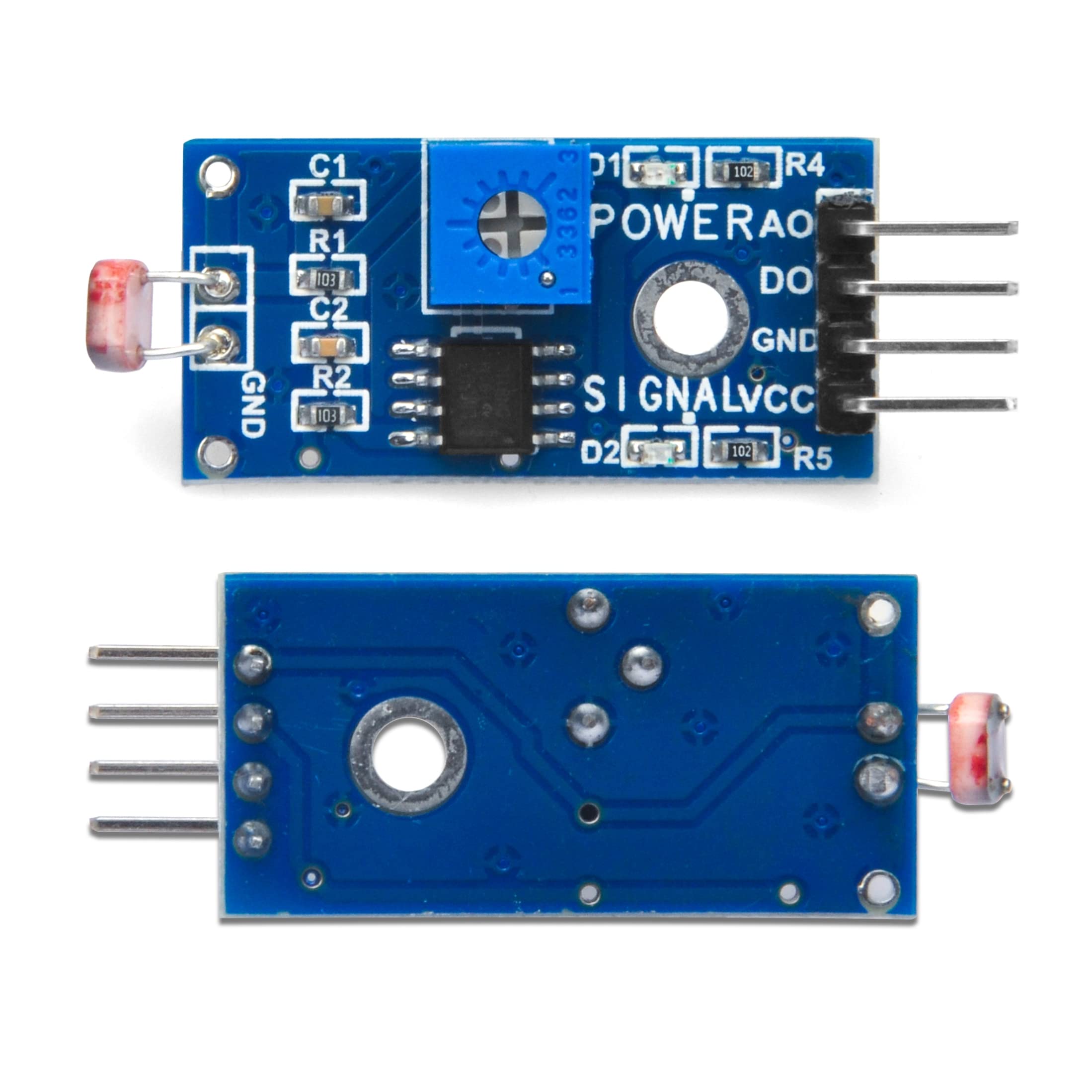

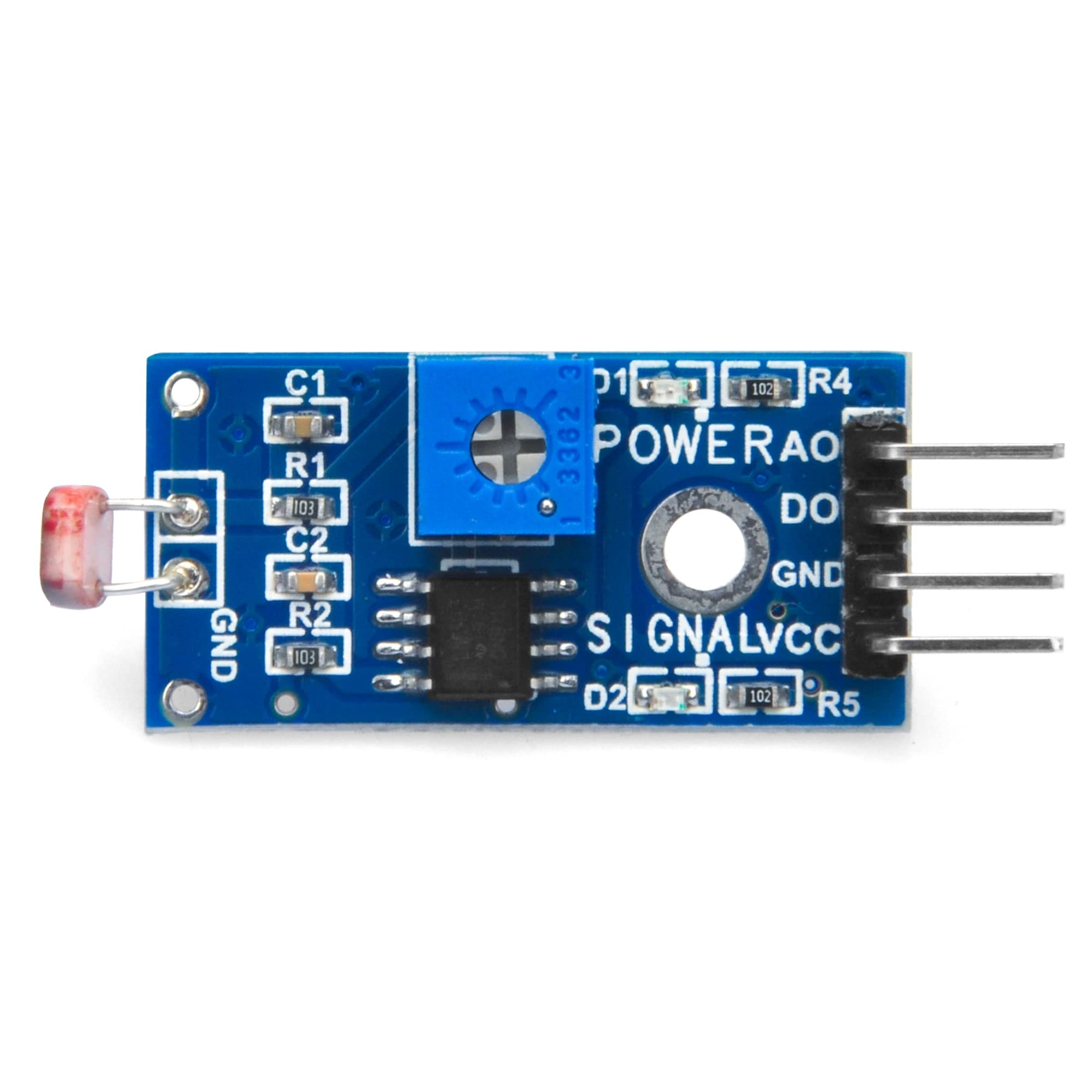

Product Wiring Instructions:

VCC ---- "+"

GND ---- "-"

DO ---- TTL Signal Output

AO ---- Analog Signal Output

Package Includes:

10 x Photosensitive Sensor Module

Brand	Gowoops
Manufacturer	Gowoops
Country of Origin	USA
Model number	ZZ20161810
Item Weight	22.7 g
Product Dimensions	14 x 17 x 25 cm; 22.68 g
Item model number	ZZ20161810
Item Height	25 Centimeters
Item Width	17 Centimeters
Are batteries included?	No
