Amarine Made 12V DC Submersible Deep Well Water Pump 3.2GPM 4" 10A/ Alternative Energy Solar Battery Powered with Stainless Steel Shell-Max Lift 230 Ft, Max Submersion 100 Ft

Amarine Made 12V DC Submersible Deep Well Water Pump 3.2GPM 4" 10A/ Alternative Energy Solar Battery Powered with Stainless Steel Shell-Max Lift 230 Ft, Max Submersion 100 Ft

Q: I want to pump through 80' of 1" pipe with a lift of 10'. i can locate the battery near the pump. what might i expect for flow with this setup? thks

first what do you want to fill with the water . the out of the pump is on one-half if you go bigger than that you will loose pressure first you maybe will have 3.2 gallon by minute but you wont have any good pressure it depend of what you want to do it can push the water throuhh 80 feets but why a pipe 1inch i dont thinks you will have much water reply me

Q: what is the flow rate at different pressures? I would be pumping from a 6 foot tank to a cabin system and trying to get 30-50 psi.

This is not a pressure pump. I use to fill tanks from my well and pumps at 7psi at 3 gallons pm. Have been using it now for 4 years and works great.

Q: Can this pump operate in a horizontal position without damage to the pump?

as I understand it horizontal is fine

Q: Hundred feet down keeps coming off and on

Several possible causes. 1) If you don't have one or two inline backflow check valves the water could be draining back down into the hole. 2) Battery is not large enough or in good-enough condition to power the pump. Use a voltmeter to look at the battery voltage for excessive fluctuations during the cycling. 3) I would assume you have some kind of control and if so check to see if something is causing the control to cycle excessively. 4) Your solar panel may not be putting out enough energy to maintain battery voltage with a pump which is running frequently because of high demand. 5) Check all wiring and connections - a bad connection, nicked cable or other similar issues could cause these symptoms. A pressure gauge on the pipe is a good idea to see how the pump is actually doing.

3.8/5

Product ID: 47641678

Secure Transaction

Details

Brand
Amarine Made
Color
Stainless
Material
Stainless
Style
Submersible
Power Source
Solar Powered
Item Weight
9 Pounds

🌊Max lift 230ft

💧3.2GPM flow rate

🔋12V power source

Product is unavailable

Oops! The product you're looking for is currently unavailable. Explore similar products for a perfect fit!

Frequently Bought Together

Amarine Made 12V DC Submersible Deep Well Water Pump 3.2GPM 4" 10A/ Alternative Energy Solar Battery Powered with Stainless Steel Shell-Max Lift 230 Ft, Max Submersion 100 Ft

Well Pump Wire Splice Kit, Submersible 3M™ Dual Wall Heat Shrink Tubing and Copper Connector for 4 Wires, #10#12#14 AWG.

Float Switch for Sump Pump - 10-Foot Water Level Sensor with Honeywell Microswitch and Adjustable Tether Length for Ground Water Bilge Pump and Water Tank – Non-Corrosive PP Casing, Rated to 13 Amps

Description

🚀 Elevate Your Water Supply Game!

🛡️ BUILT TO LAST - Crafted from robust stainless steel, this pump is designed for long-term reliability.
🔒 WATERPROOF DESIGN - Engineered with a waterproof power cable to ensure durability in any environment.
🌟 UNMATCHED PERFORMANCE - Experience a powerful 3.2GPM flow rate, perfect for all your water needs.
⚙️ EFFORTLESS INSTALLATION - Quickly connect to existing systems without the hassle of additional components.
🌞 SOLAR POWERED CONVENIENCE - Seamlessly integrates with solar panels for eco-friendly water supply solutions.

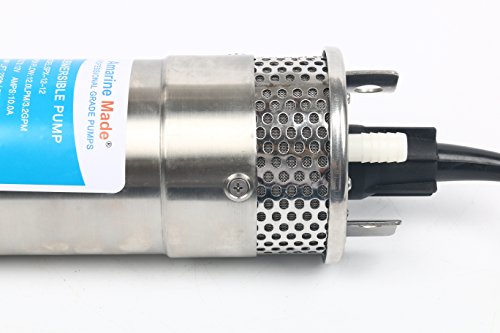

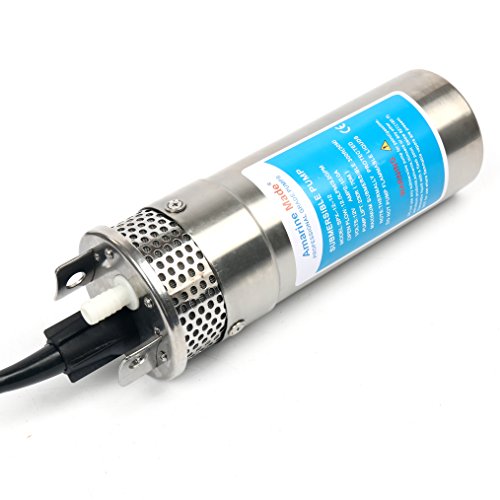

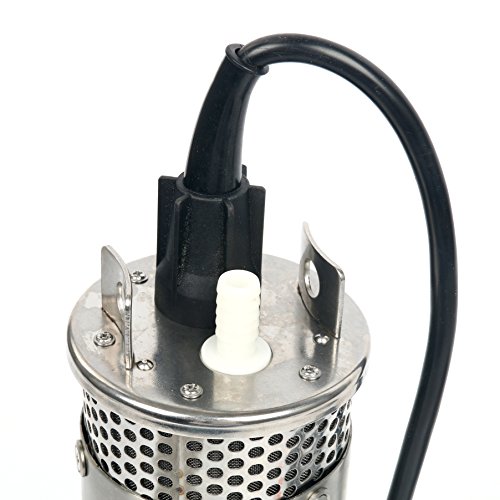

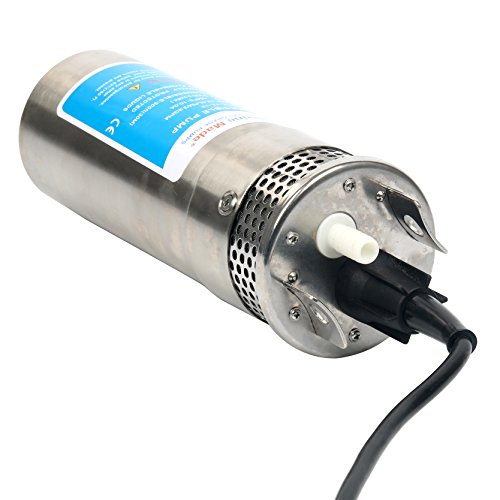

The Amarine Made 12V DC Submersible Deep Well Water Pump is a high-performance solution for efficient water delivery, boasting a flow rate of 3.2GPM, a maximum lift of 230ft, and a waterproof design. Ideal for solar-powered applications, this durable stainless steel pump is easy to install and perfect for various uses, from irrigation to livestock supply.

Specifications

Brand	Amarine Made
Color	Stainless Steel
Material	Stainless Steel
Style	Submersible
Power Source	Solar Powered
Item Weight	9 Pounds
Maximum Flow Rate	3.2 Gallons Per Minute
Maximum Lifting Height	230 Feet
Voltage	12 Volts
Manufacturer	Alfa Marine (shanghai) Co.,Ltd
UPC	602989772048
Part Number	SPX-12-12
Item Weight	8.95 pounds
Package Dimensions	15.24 x 5.63 x 4.69 inches
Item model number	SPX-12-12
Is Discontinued By Manufacturer	No
Item Package Quantity	1
Batteries Included?	No
Batteries Required?	No
