⛽ Fuel your hustle with precision and power!

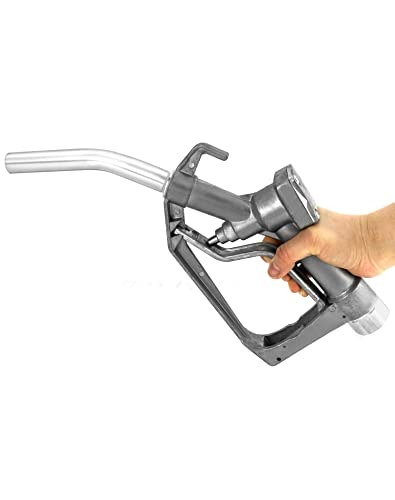

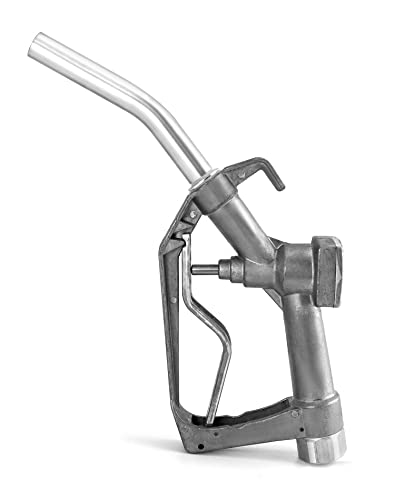

The QWORK Fuel Nozzle is a rugged, all-metal 3/4 inch NPT manual nozzle designed for gasoline, diesel, and kerosene fueling. Featuring a 15 GPM flow rate and a max operating pressure of 50 PSI, it offers continuous flow control and a 360° swivel for effortless, leak-free fuel transfer. Ideal for professional-grade fuel pumps, it combines durability with precision to keep your equipment running smoothly.
| ASIN | B09T38814T |
| Batteries Included? | No |
| Batteries Required? | No |
| Best Sellers Rank | #17,758 in Automotive ( See Top 100 in Automotive ) #182 in Fuel Transfer & Lubrication Products |
| Brand | QWORK |
| Customer Reviews | 4.7 4.7 out of 5 stars (197) |
| Date First Available | February 22, 2022 |
| Exterior Finish | Aluminum,Metal |

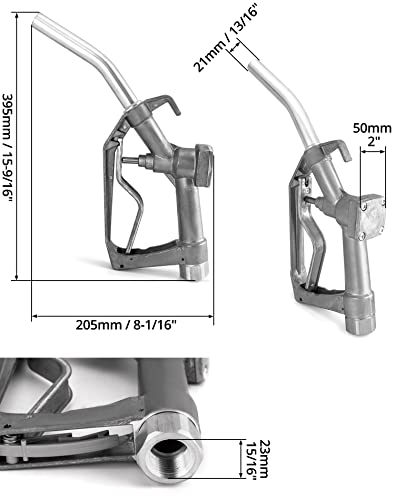

| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Item Weight | 1.5 pounds |
| Item model number | CA7503 |
| Manufacturer | QWORK |
| Material | Aluminum, Metal |
| Maximum Operating Pressure | 50 Pound per Square Inch |
| Number of Ports | 2 |
| Outlet Connection Size | 0.75 Inches |
| Outlet Connection Type | National Pipe Tapered |
| Package Dimensions | 15.16 x 7.6 x 2.17 inches |
| Part Number | CA7503 |
| Size | 1 Pack |
| UPC | 734900728879 |
M**E
Good product at a decent price point!

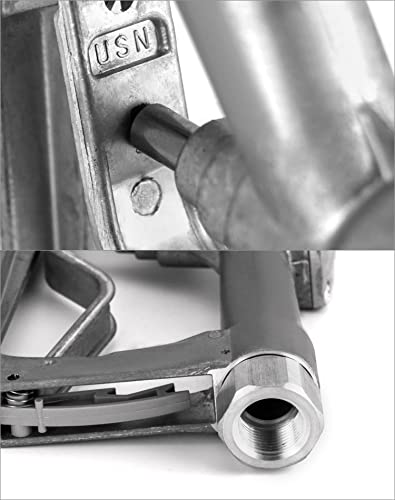

I bought this nozzle for a diesel transfer pump set up. I used it first time to transfer 16 gallons of hydraulic oil into my Kubota tractor after oil and filter change. It worked great! The 3/4 pipe thread was cut properly and provided a good fit with a brass 3/4” coupling. I wish it came with a dust cap / plug at end of nozzle to keep trash out when not in use. I remedied it with a piece of soft insulation foam.
L**A
Solid, Works for Gravity Gasoline Supply, No Auto Shutoff
Replaced broken plastic pump handle on Vevor gasoline caddy. Works really well, swivels, and no worries about leaking again like from the OEM plastic handle.
C**.
Yep.
Works good so far!
R**.
Satisfying
Good fit for the price
C**S
Recommend

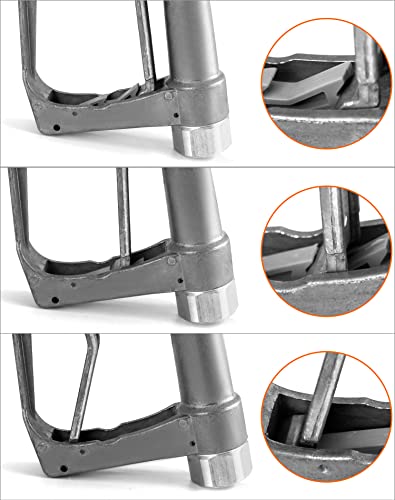

Very nice has a thing to hold trigger down so you don’t have to hold the hole time
D**Y
Good
Used it as a decor piece. Idk if its good for actual use or not.
W**R
Seems to work so far
Only used it once so far and it works as described. My fuel pump had an open spout on the end of the hose and I spilled diesel all over the place when placing the spout in the tank from the fuel in the line. This now gives me a shut off at the end of the hose line. Had to come up with my own way to store the nozzle because the pump was designed with a specialized hanger in the casting where you could hang up the existing spout. My solution was to bolt a short 1" piece of pipe to the fuel trailer where I can stick the end of this new nozzle in. My line already had a 3/4" threaded connection where the old open spout which I suppose you could call a nozzle was and the threads matched up with this new nozzle just fine. I used some Teflon tape just to be sure however my pump is a hand crank so it does not have a lot of pressure when I am not cranking. This new nozzle will swivel at the connection the the line as advertised if you turn it with force but I don't really need a swivel so that is not an issue for me. Be sure to check the nozzle tube before using it for fuel. I found metal shavings in mine but a puff of air cleared them.
D**N
Good product for the money
Works fine. Has a handle lock but no auto shutoff.
D**R
Got an old 1950 gas pump and handles fit perfect
