⚙️ Power your pneumatic systems with precision and speed—don’t get left behind!

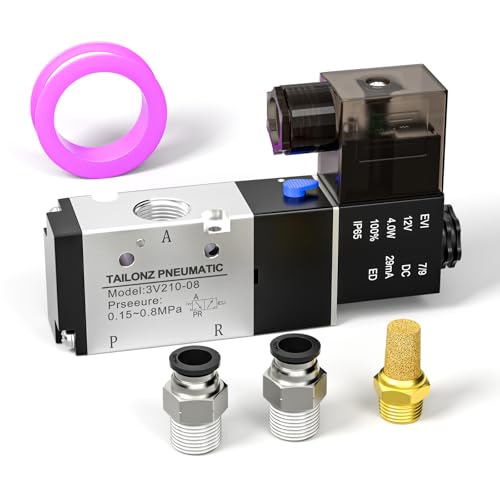

The TAILONZ PNEUMATIC 3V210-08 is a DC12V single coil, 2-position, 3-way solenoid valve featuring 1/4" NPT inlet, outlet, and exhaust ports. It operates reliably at pressures from 25 to 116 PSI, switching air flow up to 4 times per second with zero leakage. Designed with a durable aluminum body and equipped with a convenient LED actuation indicator, it offers easy installation with included fittings and mounting options, making it a top choice for industrial and automotive pneumatic control.
| ASIN | B095VTDKHL |
| Batteries Included? | No |
| Batteries Required? | No |
| Best Sellers Rank | #7,134 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #1 in Solenoid Valves |
| Brand | TAILONZ PNEUMATIC |
| Color | Black and Silver |
| Customer Reviews | 4.4 4.4 out of 5 stars (1,295) |
| Date First Available | May 26, 2021 |
| Exterior Finish | Aluminum |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Item Package Quantity | 1 |
| Item Weight | 8.8 ounces |
| Item model number | 3v210-08 |
| Manufacturer | TAILONZ PNEUMATIC |
| Material | Aluminum |
| Maximum Operating Pressure | 116 Pound per Square Inch |
| Number of Ports | 3 |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | NPT |

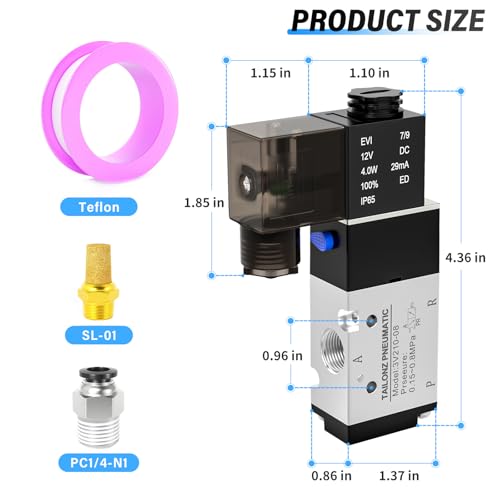

| Package Dimensions | 5.51 x 3.58 x 1.65 inches |
| Part Number | 3V210 JX 12V |
| Size | 1/4"NPT/DC12V/Junction Box |
| Specification Met | ASME B16.34, ASME B16.5 |
| Style | 2 Position 3 Way |
C**Y
Nice and cheap
Works great
T**S
Excellent value, excellent performance.
I decided to try this valve out instead of buying the $160-$300 one that is sold by the manufacturer of the exhaust brake I put on my Dodge diesel pickup. It was easy to wire, came with all the fittings I needed to plumb it, had simple mounting holes, an led light on the solenoid to let you know when it's actuated, (nice feature when installed under the hood of a diesel truck) and has been working reliably for the last 3 months. Valve probably gets actuated no fewer than 150 times a day, automatically by my engines computer, and is switching 160psi air pressure with zero leakage. So I would highly recommend, and will use this brand in the future shall I ever have any more air or fluid switching needs.
N**K
Made my train horn s
Needed for an air horn air relay, works great!
M**Y
Work great.
Worked great and was much cheaper than anyone local. Still on the truck and working.
K**T
Accurate description
Just what I was looking for exclamation
A**R
Doesn't work
Broken wire right out of the box. Unit doesn't even work
D**E
quality of construction and smooth operation
These solenoids replaced a lesser quality brand on my pneumatic control prototype. These valves are slightly larger but are constructed of durable aluminum instead of the less reliable plastic of the prototype valves. The fittings worked well with the valves with no leaks. Electrical connections are screw terminals in the junction box housing. The electrical coils provide smooth quick action. Use the exhaust screens to quickly relieve internal pressures and maintain cleanliness of the valve. Highly recommended.
R**O
Easy to use
This brand is nice to use. It doesn't extend and stay, unless it remains switched on. When turned off, it releases and the cylinder returns to starting state. I would call it push release. They are easy to use. Some cylinders may require buffer tank near by.
B**.
I like that these valves can be ordered with different voltages..so make sure you select the proper voltage.So far it works exactly what I needed it for.But the true test with everything is the longentivity, and that I cannot verify yet.Have used it and cycled it a few hundred times and so far so good.
E**S
Que llegaron rotas las conexiones
A**A
Product good
J**S
Le solénoïde est défectueux sur les deux valves...
A**T
Pour une deneigeuse
