🚀 Elevate your embedded projects with Silicon TechnoLabs’ powerhouse board!

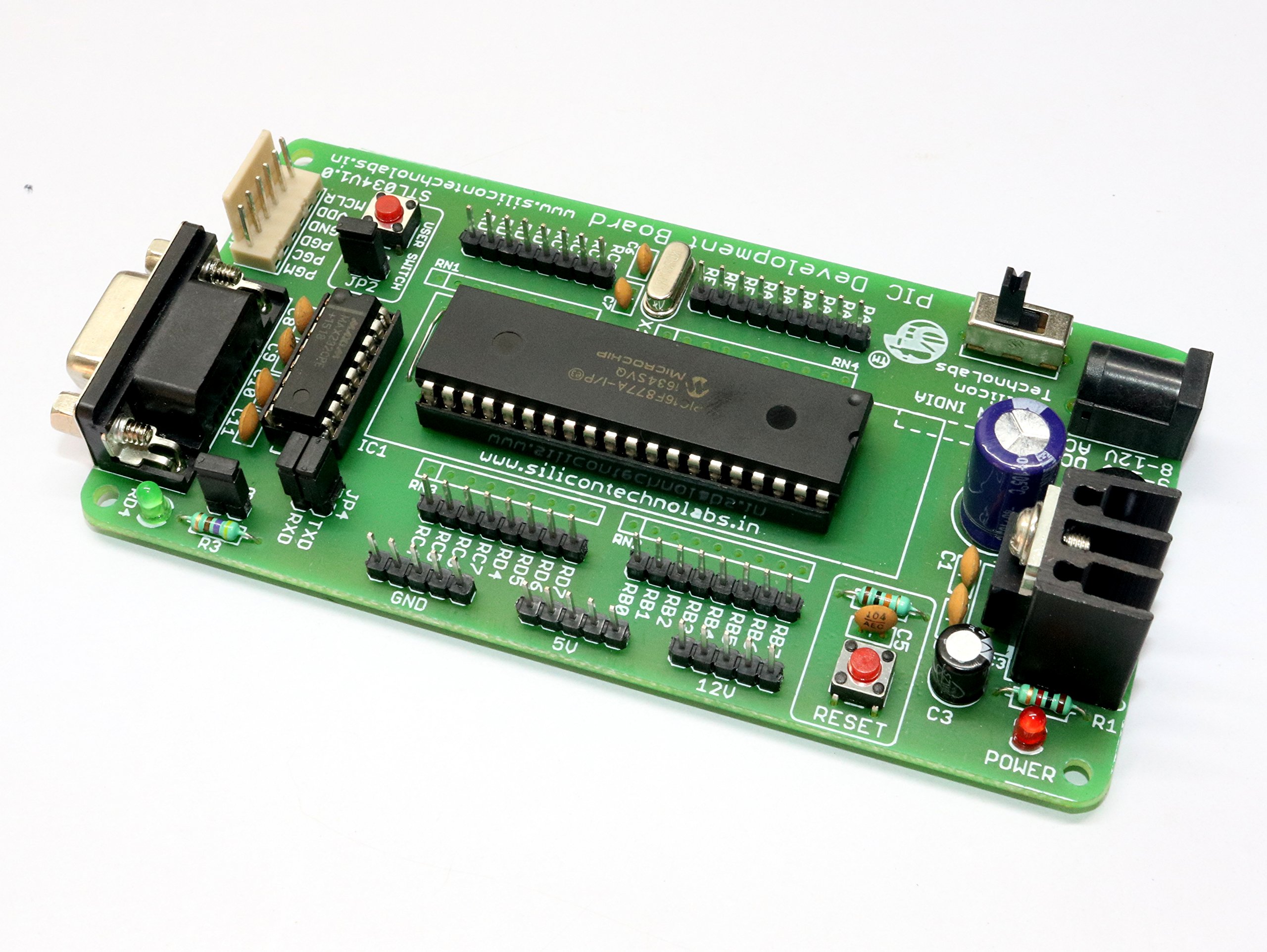

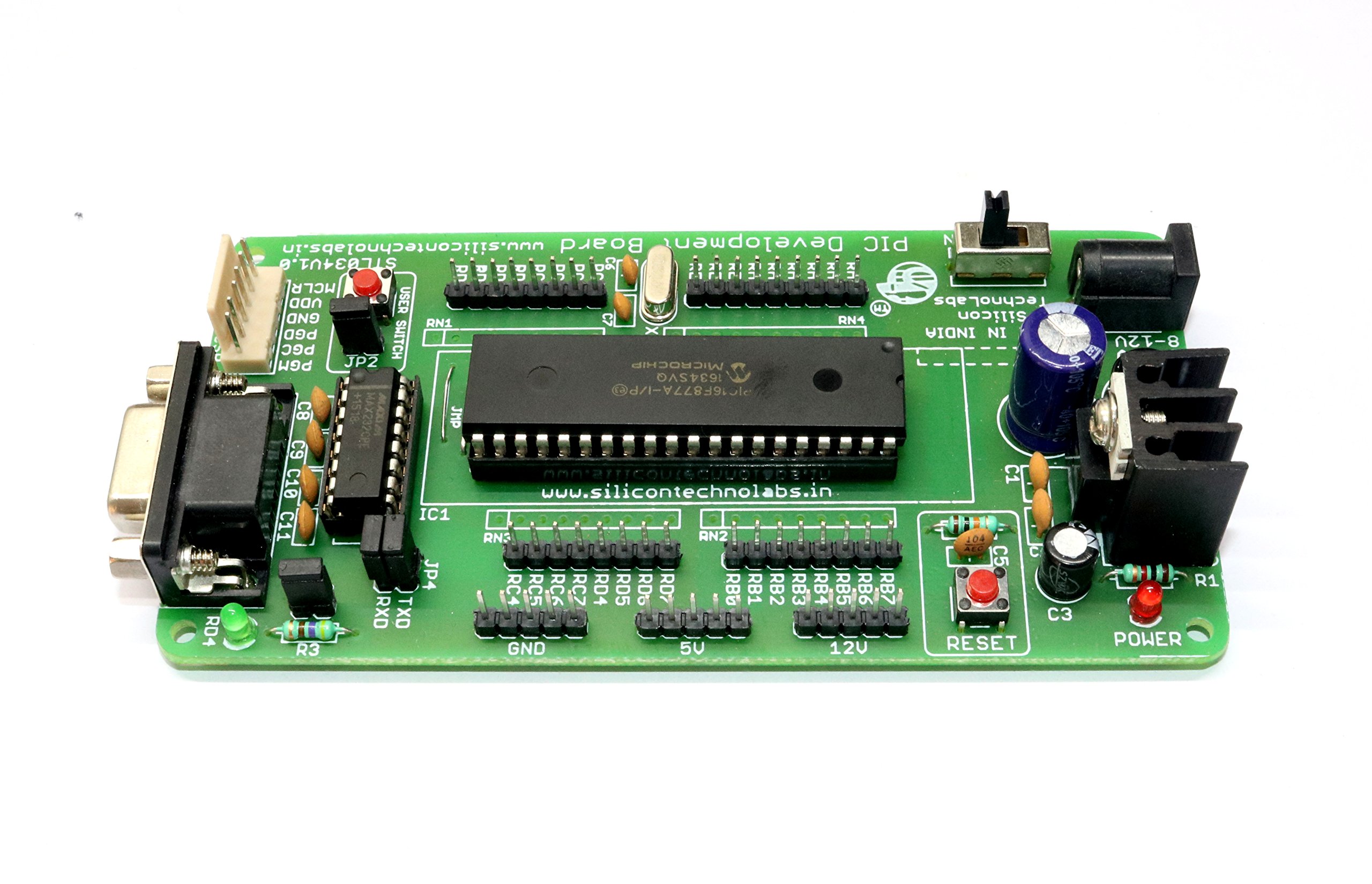

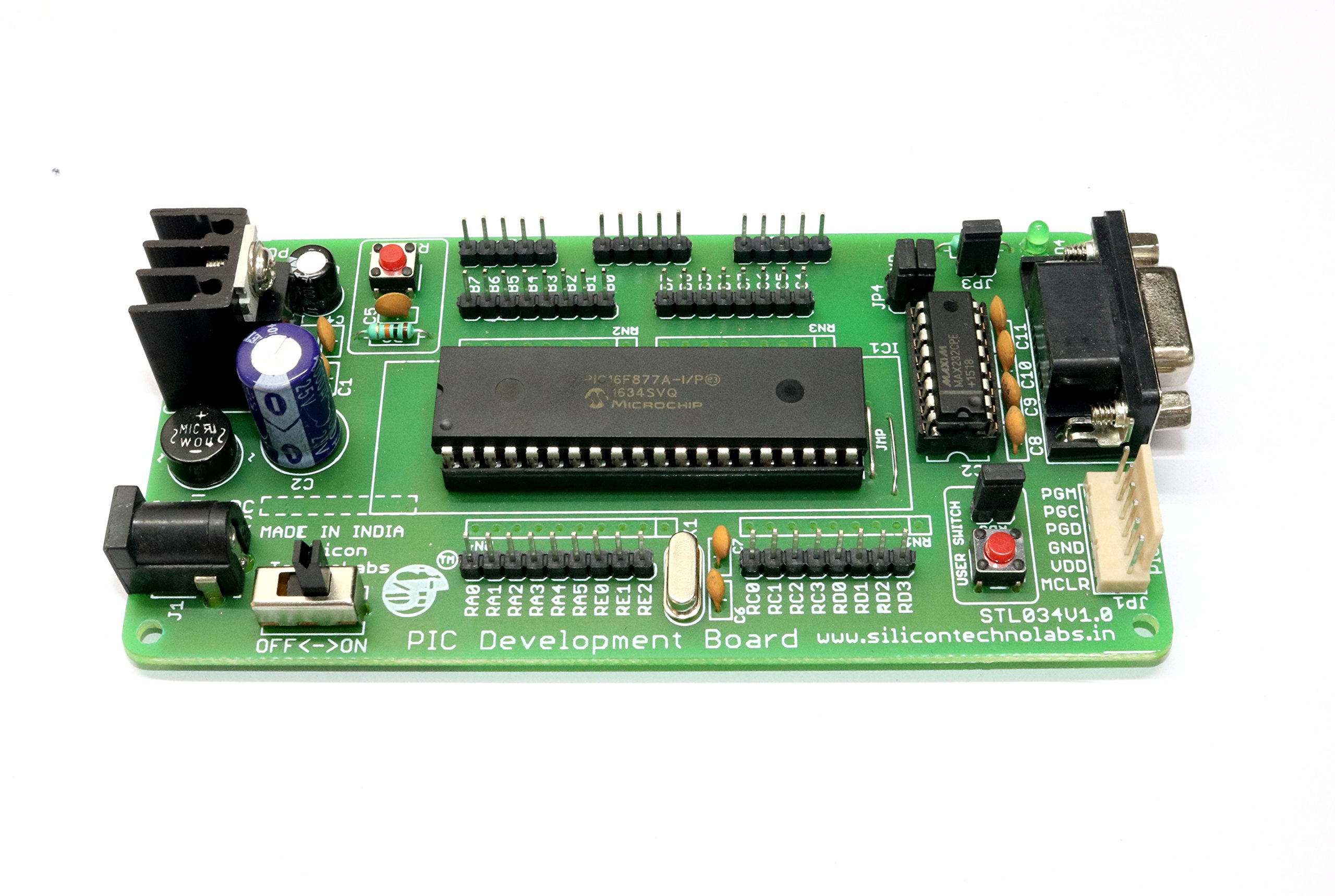

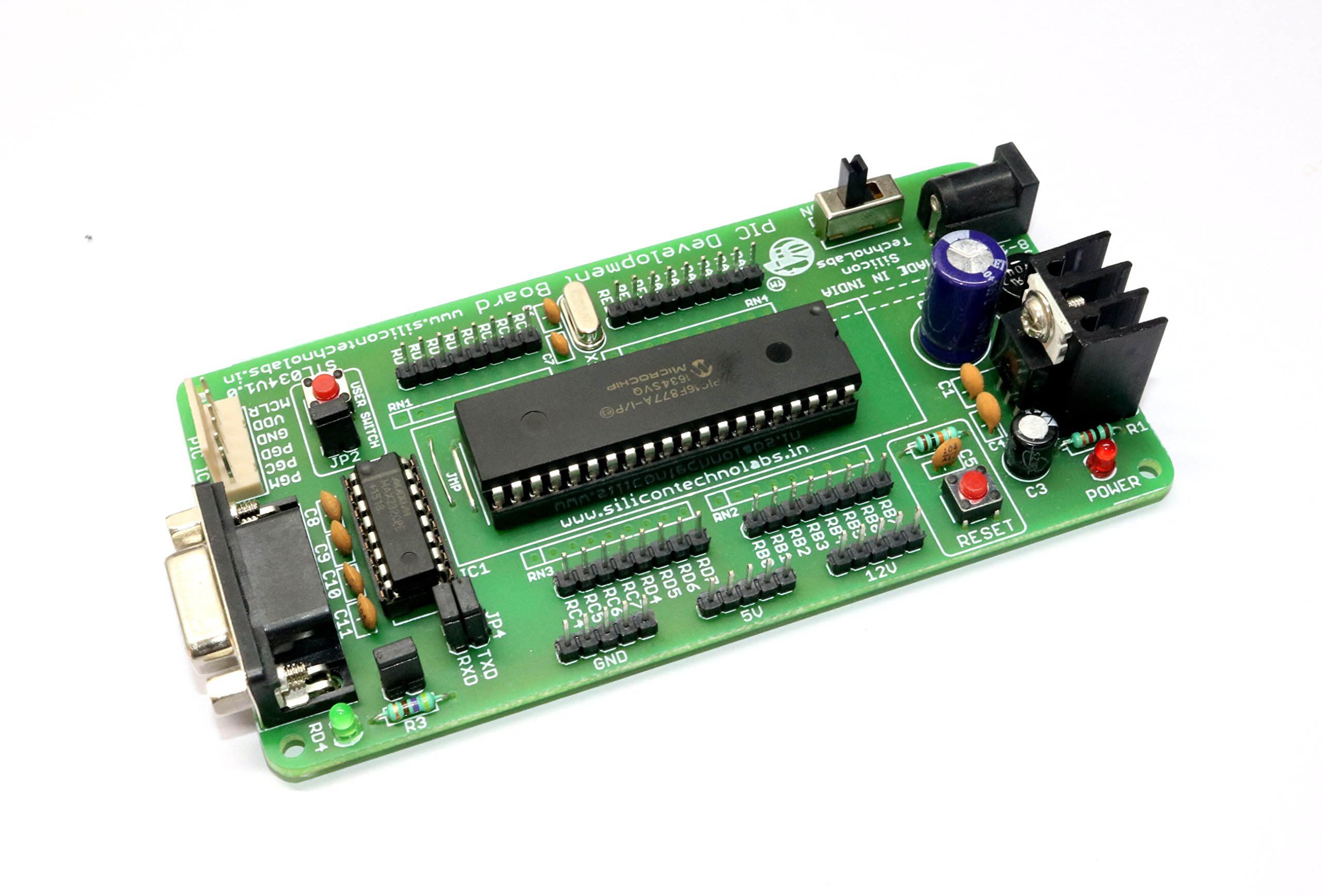

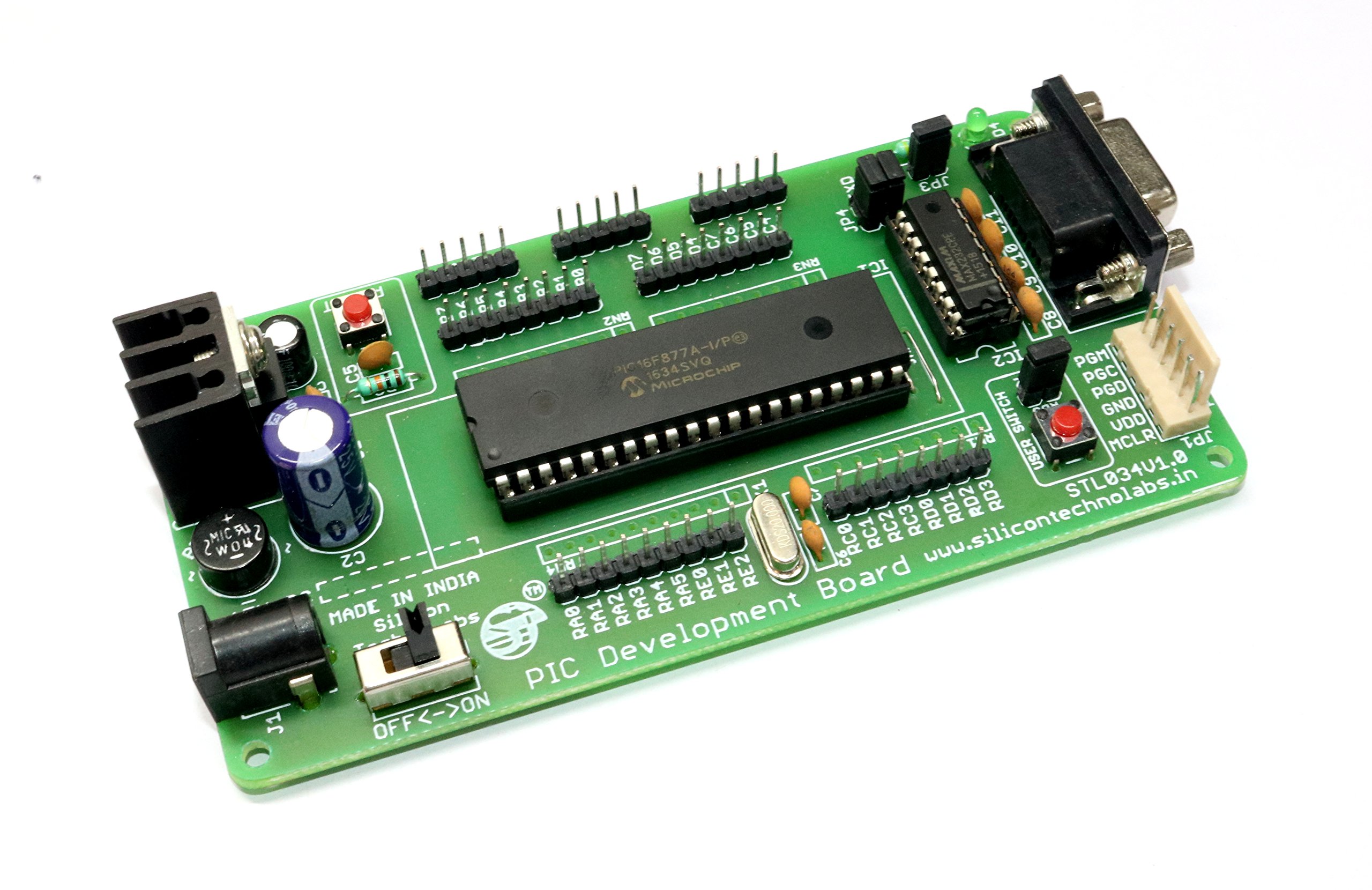

The Silicon TechnoLabs PIC Development Board STL034 features an onboard PIC16F877A microcontroller running at 20 MHz, integrated MAX232 for serial communication, and a versatile power system with 12V/5V buses and a built-in regulator. Designed for professional developers, it includes an ICSP header compatible with Pickit programmers, robust FR-4 PCB construction, and user-friendly controls like power and reset switches, making it the ultimate platform for rapid prototyping and embedded system innovation.
| Brand | Silicon TechnoLabs |
| Manufacturer | Silicon TechnoLabs |
| Model | STL034 |
| Product Dimensions | 12.4 x 6.4 x 1.8 cm; 90 g |
| Item model number | STL034 |
| Holder Capacity | 40 Pin DIP PIC micro-controller |
| Operating System | User Define |
| Processor Speed | 20 MHz |
| Processor Count | 1 |
| Compatible Devices | PIC16F877A,PIC18F4550, ►Support 40 Pin DIP PIC micro-controller Pin compatible with PIC16F877A |
| Special Features | ►12V, 5V and GND bus provided for external peripheral., ►5 mm standard DC plug-in jack for power supply, ►Four 3mm mounting hole for easy mounting, ►High quality FR-4(1.6 mm) PCB, ►On-board 20MHz crystal, ►On-board 5V regulator (LM7805) circuit.►On-Board power supply on-off switch.►Power Status LED(RED), ►On-board MAX232 interface circuit for easy communication with a computer and other serial devices (GPS modules, GSM Modems, etc), ►On-board bridge rectifier enables the board to accept both AC and DC Input voltages, ►On-board standard ICSP (In-Circuit Serial Programming) header for loading HEX., ►Port extensions for all ports with detailed pin labeling for easy identification of pins., ►Recommended Input Voltage: 9-12V.►Min-Max Input Voltage: 9-18V, ►Support 40 Pin DIP PIC micro-controller Pin compatible with PIC16F877A |
| Chipset Type | PIC16F877A |
| Mounting Hardware | PIC Development Board with On board PIC16F877A,MAX232 IC |
| Display Technology | LED |
| Standing screen display size | 3 Millimetres |
| Resolution | 1 |
| Power Source | Recommended Input Voltage: 9-12V DC |
| Batteries Included | No |
| Batteries Required | No |
| Speed Rating | 20 MHz |
| Connector Type | USB |
| Media type | Flash |
| Has Auto Focus | No |
| Programmable Buttons | No |
| Manufacturer | Silicon TechnoLabs |
| Country of Origin | India |
| Item Weight | 90 g |
