⚡ Elevate your CNC game with micro-precision power!

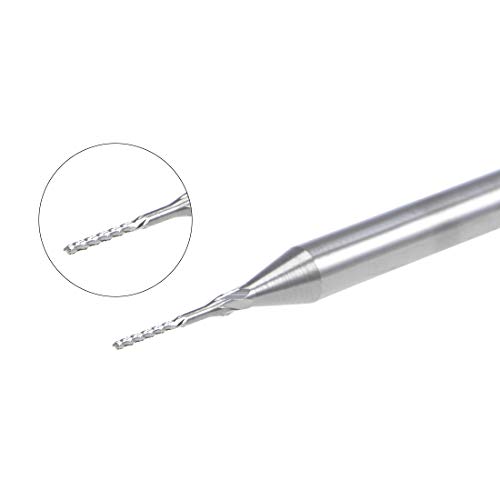

The uxcell 10Pcs 0.5mm Carbide End Mill Set features ultra-fine grain carbide cutters with a 0.5mm cutting diameter and 1/8" shank, designed for high-precision PCB and circuit board engraving. Engineered for high hardness and wear resistance, these bits deliver clean, sharp cuts across diverse materials including metal, plastics, and wood, making them an essential upgrade for professional CNC users seeking flawless results and extended tool life.
| ASIN | B07R76THZ7 |
| Best Sellers Rank | #71,094 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #5 in Drill Mills |
| Brand | uxcell |
| Cut Type | Center Cutting |

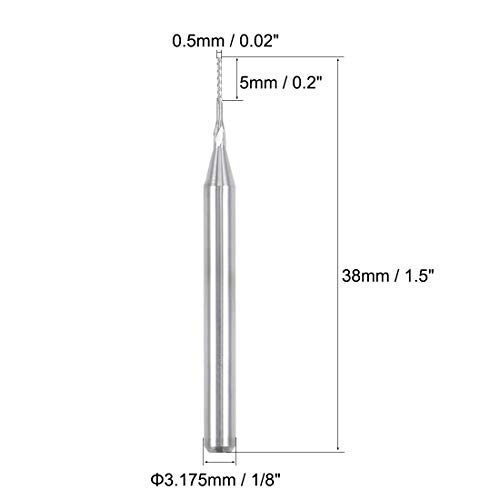

| Cutting Diameter | 0.5 Millimeters |
| Cutting Length | 5 Millimeters |
| Date First Available | June 11, 2019 |
| End Cut Type | Flat End |
| Finish Type | TiAlN |
| Item Weight | 1.44 ounces |
| Item model number | a19031400ux0480 |
| Manufacturer | uxcell |
| Number of Cutting Edges | 10 |
| Number of Flutes | 10 |
| Product Dimensions | 1.5"L x 0.13"W |
| Shape | Round |
| Size | 0.5mm x 5mm |
| Tolerance Held | Standard |
R**Y
Great but fragile
These have performed great so far. I did break the first 3 before getting any machining completed. Actually ran in aluminum with good success. Need to keep in mind they are only .6mm (.023”) in diameter so high RPM.
S**M
Solid and inexpensive end mills
I used these on dual layer abs for sign making. Work great and you don’t have to be careful with them because they are super cheap. Haven’t broken one yet
R**N
Great for with Dremel tools (must have adjustable head)
I like these end mill bits however I do not use them in a CNC machine. I use them for drilling very tiny holes in shells for crafting and jewelry making. They drill and cut very well and it does not crack the shells like a regular twist drill bit. It, also, cuts sideways which is very helpful with the small detail carvings. After the first order I ordered 3 more packs. The bits do not last long and will dull quickly which is the only downside with them. I'm very pleased and will order more in the future.
B**.
Great end mills for the price.
I use them all the time for projects in 6061 aluminum with no issues. If you read the other reviews i can tell you they have no clue on what they are doing. If you know feeds & speeds for your material these will last a good amount of time. If you plan on using these small end mills use flood coolant of mist with allot of chip clearing.
S**Y
As expected
Engraving for 1/8" chuck. Wish I could find a face mill with that shank size
A**Y
Worked well for guitar fret slots
Used to cut fret slots on a hard maple guitar fretboard. Worked great! Didn't break the bit, surprisingly. 18000 rpm, 80 ipm (40ipm also worked), 1.5mm depth overall (0.1mm per pass). I might try 0.2mm per pass next time, but I can only recommend starting with 0.1mm per pass.
T**.
5 of 10 were broken
These are very small (0.3mm), so they do break easily. Half of them were broken when the package arrived. Better packaging to protect the tips would likely help.
B**D
Grwat Product
Fantastic router bits for my inventables cnc. Outstanding detail bit!
A**R
I bought these for cutting fret slots with a shopbot cnc router worked great . Used one bit and didn't break it
H**D
Works great
A**R
Good endmills but keep showing up with 1 broken in package
