⚡ Command your circuits with Baomain’s high-power relay!

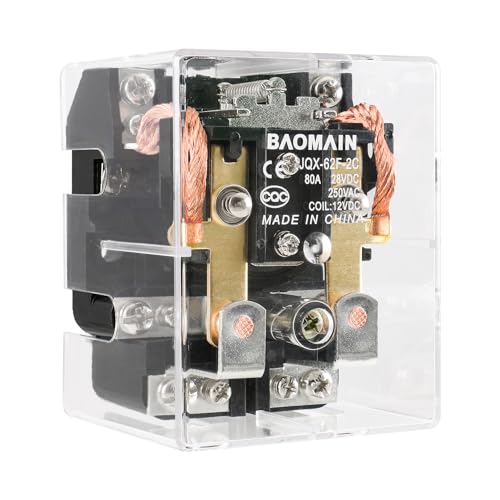

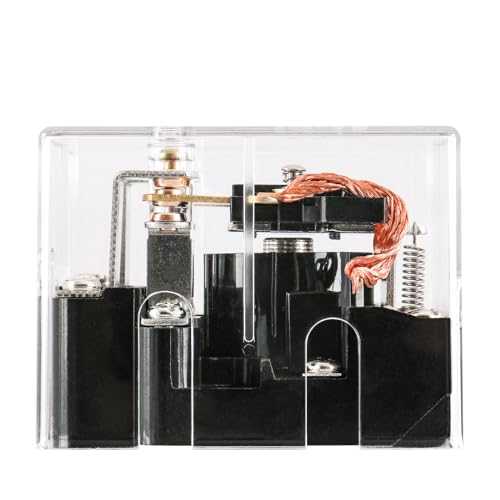

The Baomain JQX-62F-2C is a robust electromagnetic relay featuring a 12V DC coil and DPDT contact configuration with 2NO+2NC contacts. Rated for a maximum switching current of 80A and constructed with silver tin oxide contacts, it ensures reliable, low-resistance performance in automation and industrial control systems. Compact and screw-mountable, this CE-certified relay is engineered for professionals demanding durable, high-capacity switching solutions.
| ASIN | B010L02RUO |
| Best Sellers Rank | #121,004 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #151 in Electromechanical Relays |
| Brand | Baomain |
| Coil Resistance | 100 Milliohms |
| Coil Voltage | 12 Volts (DC) |
| Connector Type | Screw |
| Contact Current Rating | 80 Amps |
| Contact Material | Silver Tin Oxide |
| Contact Type | Dpdt |
| Current Rating | 80 Amps |
| Date First Available | June 29, 2015 |
| Is Discontinued By Manufacturer | No |
| Item Weight | 12.3 ounces |
| Item model number | JQX-62F-2C |
| Maximum Switching Current | 80 Amps |
| Maximum Switching Voltage | 12 Volts (DC) |
| Minimum Switching Voltage | 12 Volts (DC) |

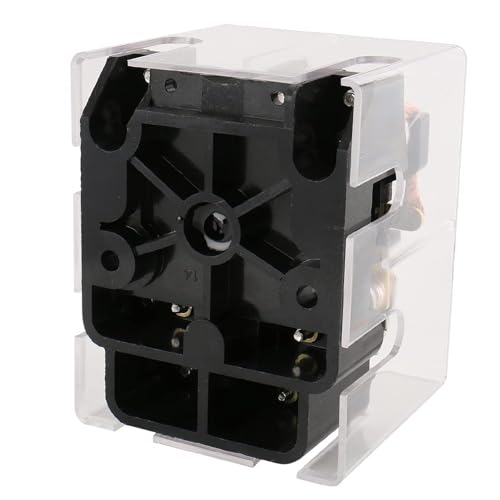

| Mounting Type | Screw Mount |
| Operation Mode | Automatic |

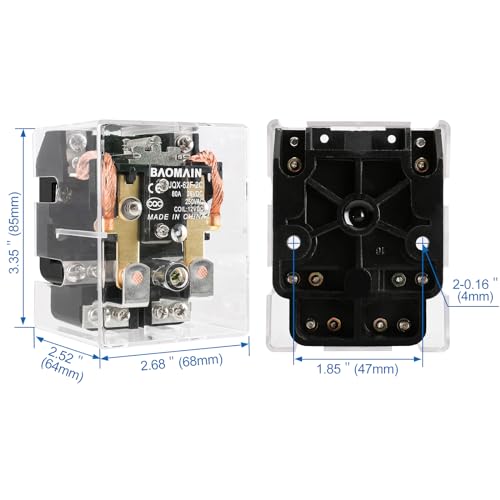

| Package Dimensions | 3.62 x 3.11 x 2.91 inches |
| Specification Met | CE |
| UPC | 711811379888 |
| Wattage | 960 watts |
N**T
heavy duty contacts, satisfied for the amount spent.
Looks good. yes plastic is a little fragile,, but mine weren't broken at all. 80A I don't know, but OK for internittent sure. If you need 80 amps all day long you will have to spend far more for a contactor.
B**L
Excellent 12 Vdc relay
12 Vdc relay Excellent product, large contacts -Very well made! Using as remote antenna switch for Ham radio transceiver.
G**S
Works fine
Door alarm
P**D
Very High Quality, look like stereo equipment

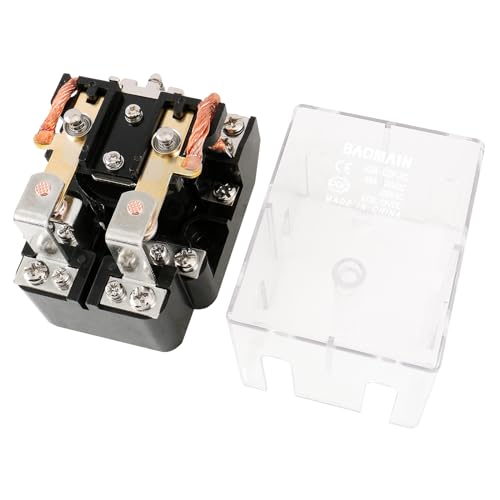

I purchased these high current relay for a UPS project and was surprised at the quality of the relay for the price. They are made in China, almost the exact copy of a more expensive relay I usually purchase. I use these relay to switch sump pumps from the grid to the inverter during power outs. They are "open Frame," but include a Dust cover. Will purchase them again in the future.
J**K
Broken before shipped
Bought this for a transfer switch. Functions okay and should work. However, one terminal was broken off and the other side chipped. This did not happen during transit as the pieces in the bag did'nt fit and the cover would have to been smashed, which it was'nt. It was simpler to glue things back together in less time than it would have taken to package for return. For the price it is a good buy, but if I hadn't noticed till later it would have been aggravating.
J**Z
Un relay con buenas especificaciones y verdaderamente funciona muy bien.
R**Z
Reasonablely priced transfer relay.
A good heavy duty transfer relay.
R**N
Works great
I like the large contact and 12 volts coil . I use it as generator transfer switch. Normally close contact is use for normal power. Coil is only energized during power failure. Not tested for durability yet but works great for my purpose
R**R
Merci
